4L80E Trans Cooler Kit w/ Fan & Fragola 20 ft Line / Fittings

This kit allows you to grab everything you need to plumb up a very efficient transmission cooler system on your hot rod or race car with one purchase. The cooler comes standard with a fan for great cooling ability even at low speeds and in remote mounted areas. This kit uses Fragola Made in the USA lines and fittings!

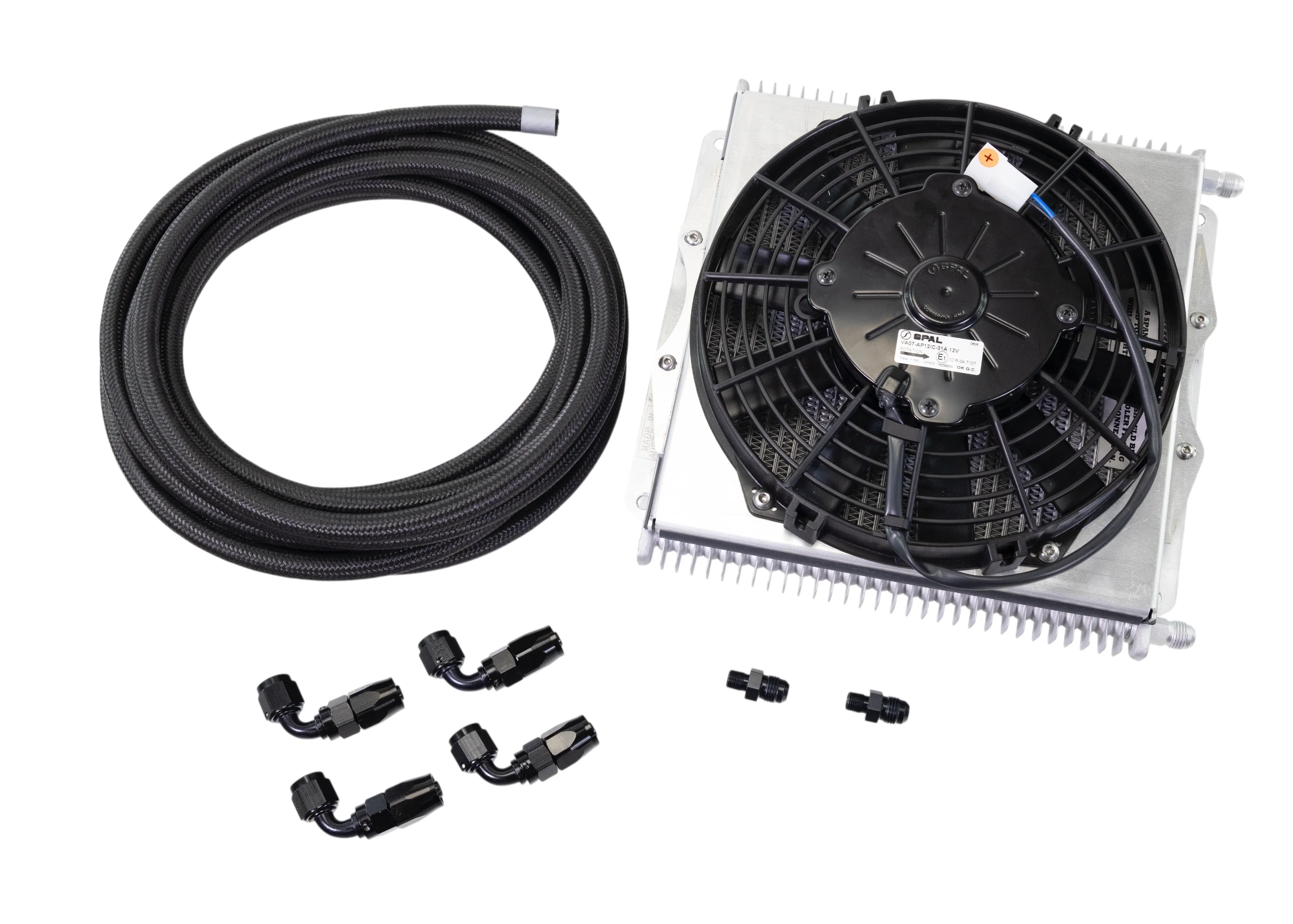

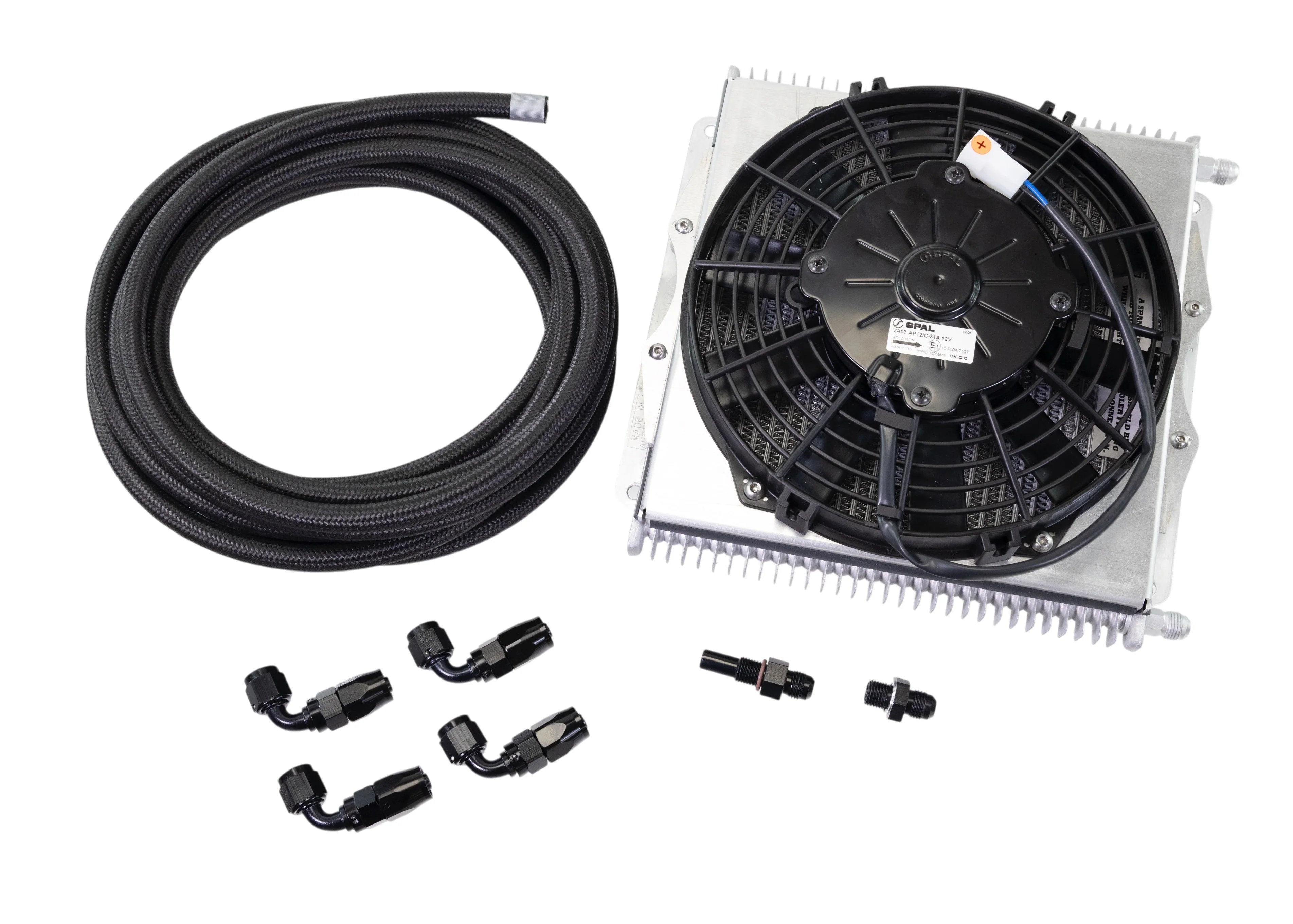

Included in the kit are:

• (2) Transmission Oil Port Fittings w/ #6 AN male ends correct for a 4L80E transmission

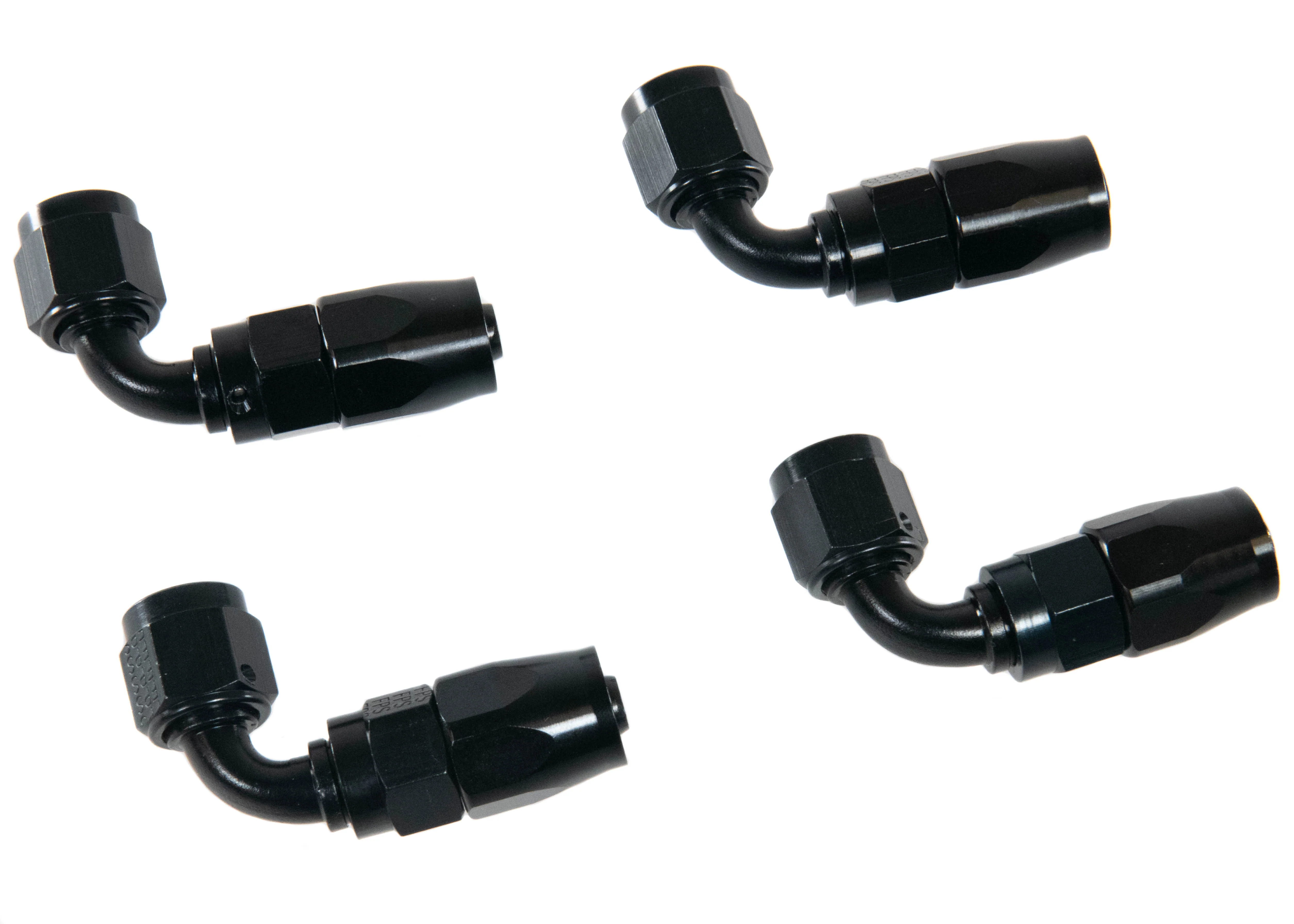

• (4) 6AN 90* Hose Ends

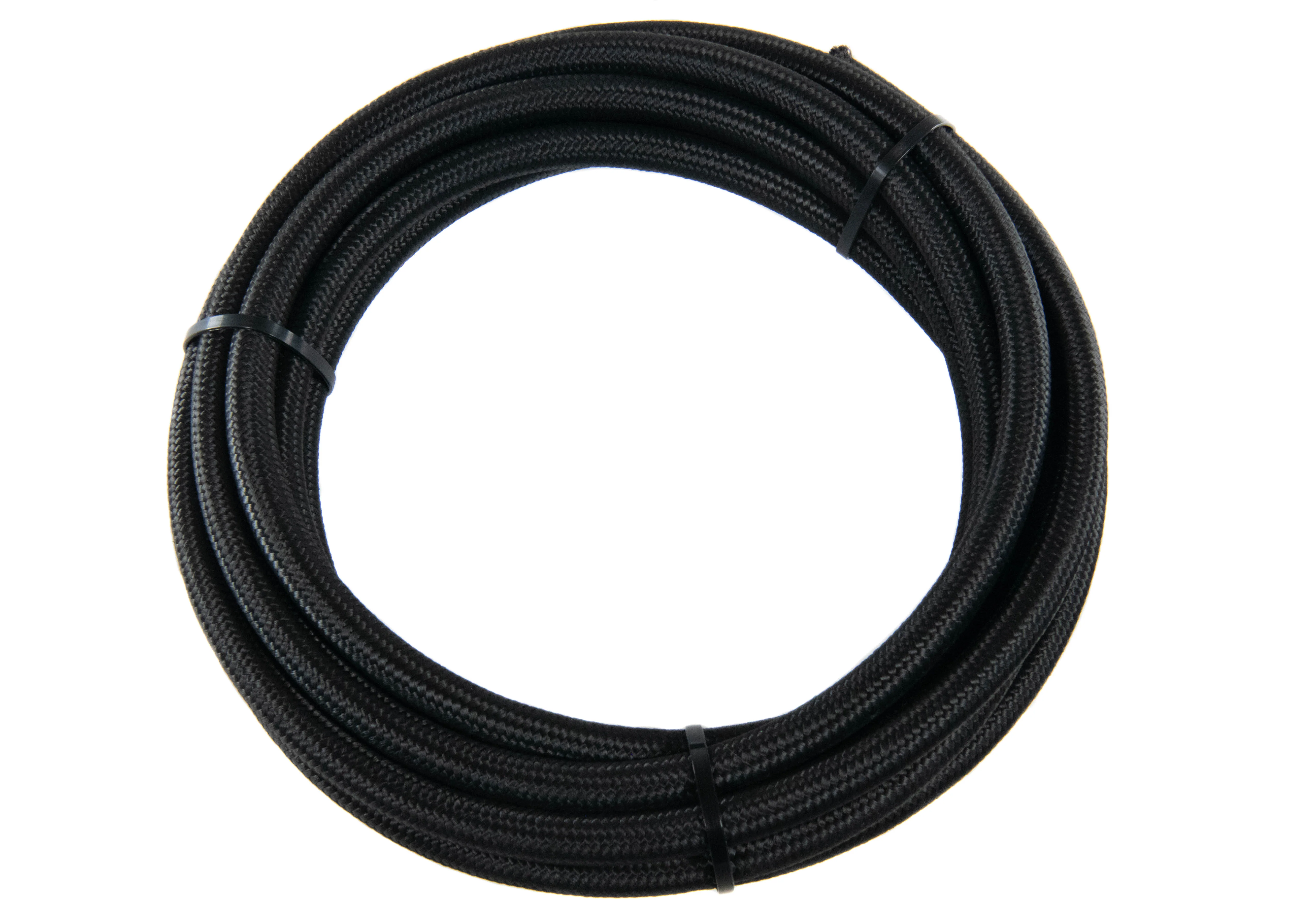

• 20 foot Fragola Performance Black Braided Nylon Hose
• 16-100 Motion Raceworks Transmission Cooler w/ fan

Note: The 4L80e specific “long tube style fitting” is for 99+ 4L80e. If your transmission cooler ports are both on the front and closer together, then you will want to purchase  cooler kit 161001.

Motion Raceworks Transmission Remote Cooler -6AN fitting

Motion Raceworks is known for offering solutions for all styles of vehicles. With a long history in drag and drive we were looking to create a great solution for transmission cooling using some of the best components available.

This transmission cooler is a custom build to our specs. Featuring a PWR tube and fin core combined with a SPAL electric high flow fan and a custom built shroud.

Features

• Built using PWR’s patented plate-and-fin technology for superior heat transfer efficiency and compact performance
• Compact 4 bolt mounting solution
• Spal electric fan produces 590cfm of air movement
• Dramatically extends engine and transmission life
• 6AN inlet size requires no adapters

Specifications

• Cooler style:  Plate and Fin
• Inlet size:  -6AN Male
• Outlet size: -6AN Male
• Fan size: 9"
• CFM:  590
• Amp draw: 6-6.6 amps
• Length: 11.1"
• Width 10.3"
• Depth:  3.5"
• Airflow: 10 blade puller / suction fan

See all transmission kits to find this cooler bundled with appropriate fittings and line for specific transmissions: Click Here
