Motion Raceworks Passenger Side Cable Drive LS Mechanical Fuel Pump Bracket F-Body Spacing

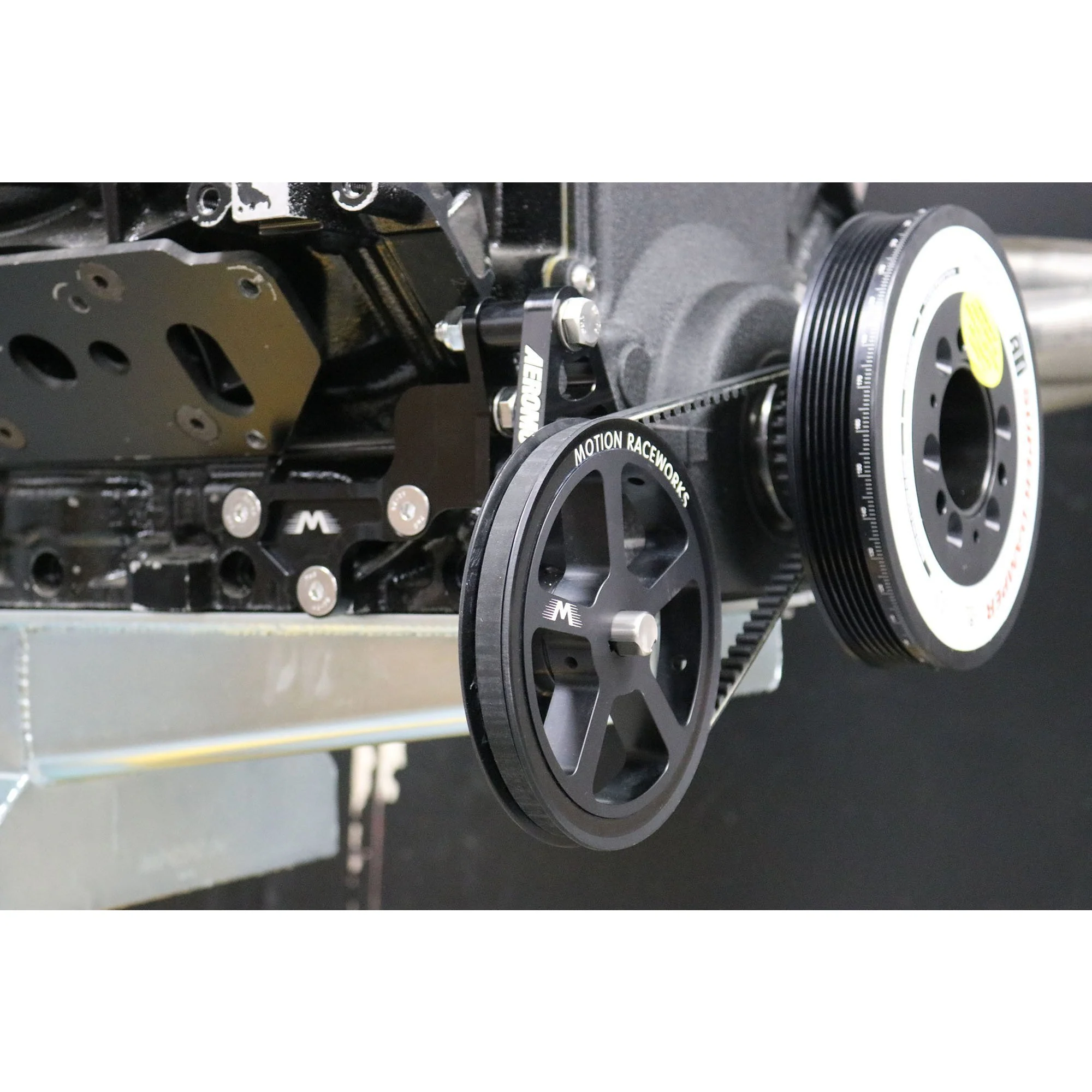

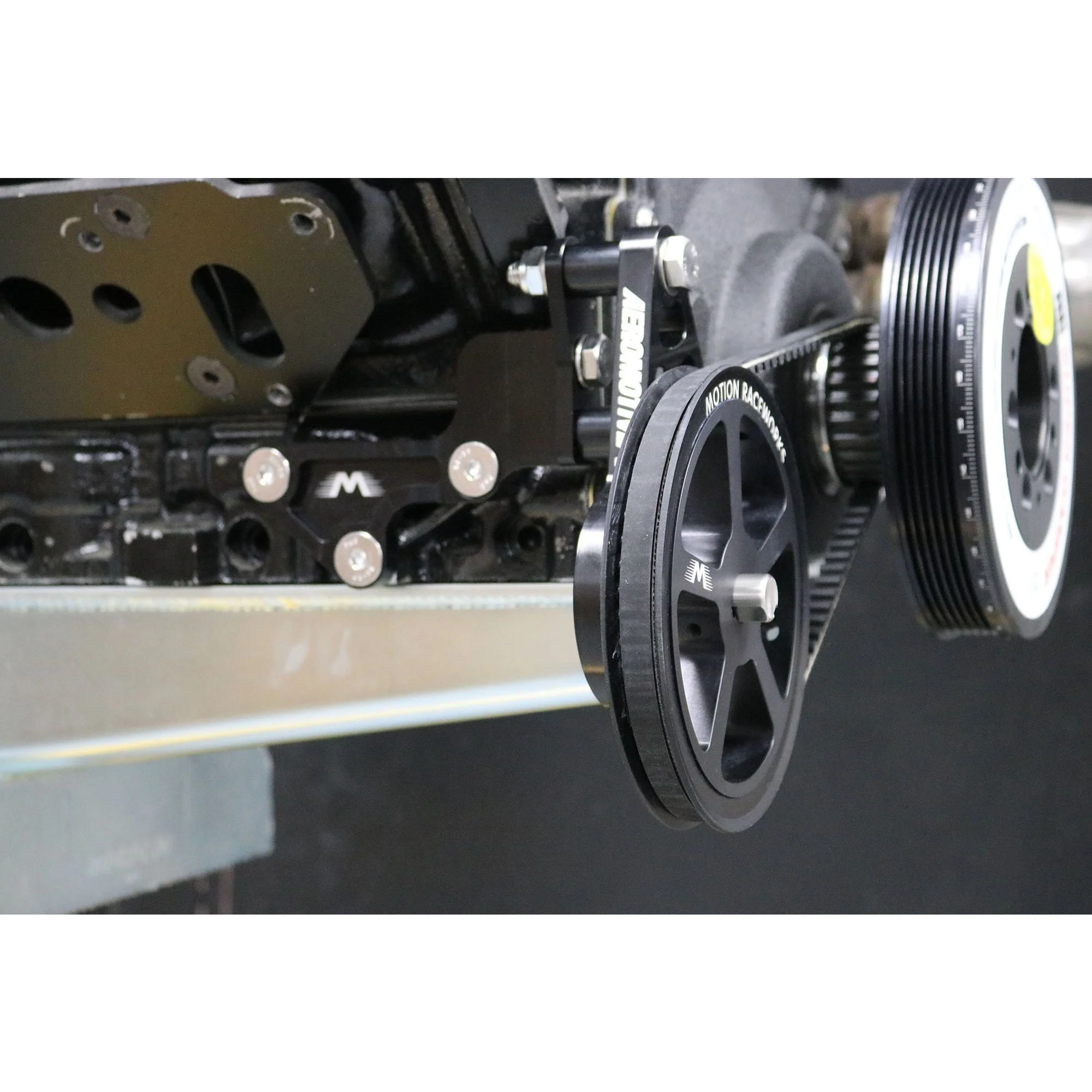

Motion Raceworks' goal is to bring viability to the market.  This complete fuel system bracketry kit gives you everything you need to get going.  This kit utilizes the HTD pulley that bolts to the back of the ATI Balancer to drive the system.

NOTE:  If you have any questions on pulley combinations, compatibility, etc. please call us at (800) 878-9274.

Included in this kit are the following:

• Passenger side block mounting bracket (non motorplate setup)
• Required Spacers and Hardware

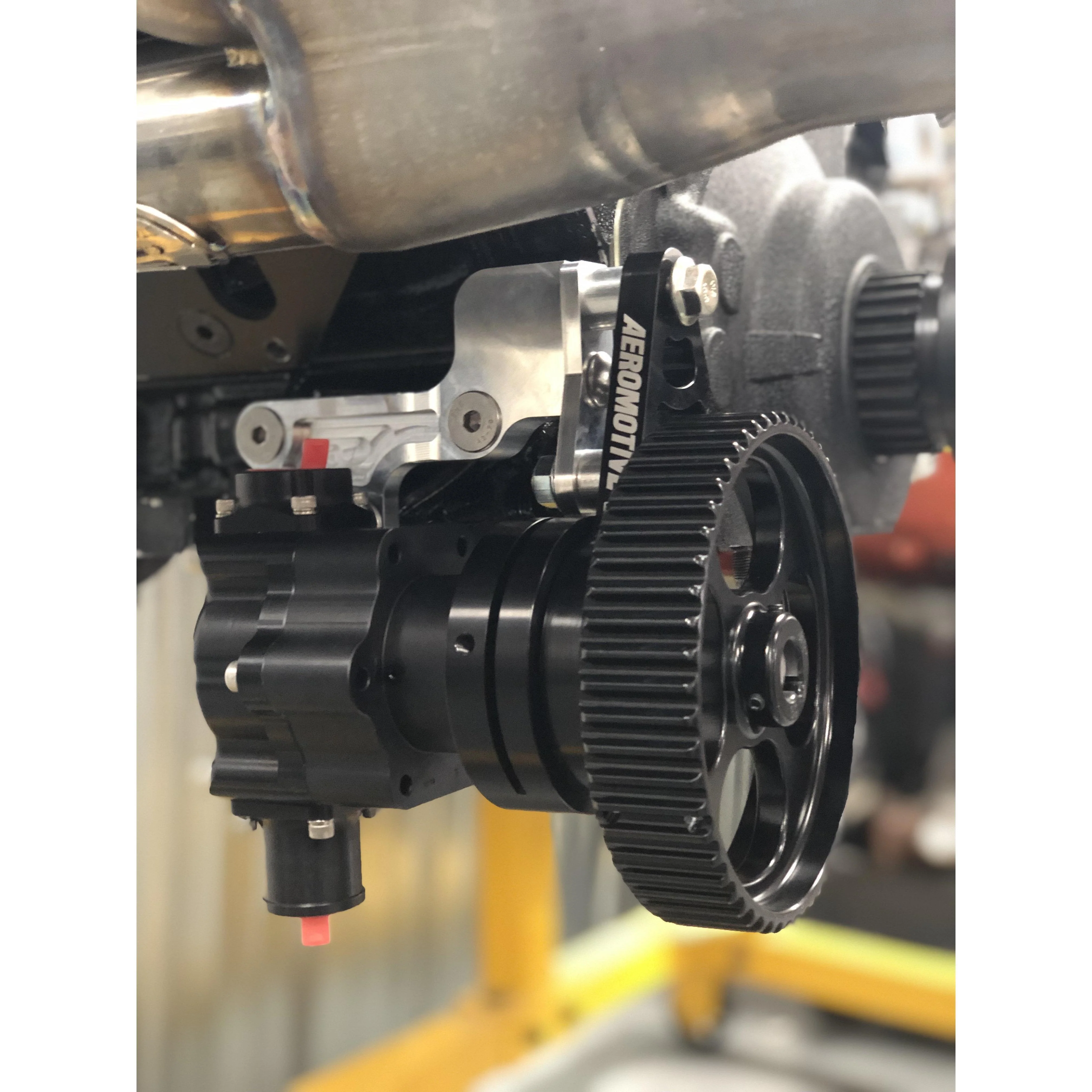

• Adjustable Swinging Aeromotive Pulley/Shaft Mount
• Waterman Cable Drive Adaptor for Front (Rear of Bracket)
• F-Body Pulley Size (50 tooth)
• Belt

Also Needed:

• ATI pulley with HTD drive setup on rear
• Complete Balancer with HTD Hub: 918852
• HTD Hub Only To Replace Current Hub: 916037a

NOTE:  This system will not allow you to run AC drives in conjunction.  You need to order ATI HTD pulley rear hub or ATI balancer with HTD pre installed, none are included!

Learn how to properly size / select a pulley combination for your mechanical fuel pump / mechanical oil pump.

Please watch this video to see the modularity this kit offers for clearance for accessories and chassis components.
